Import of 2D-Scan data

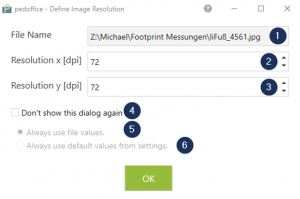

For the import of 2D-Scan data it's necessary to enter the resolution of the measurement. The resolution dialog suggests the resolution stored in the file and displays it as resolution x and resolution y .If necessary change it to the right resolution and click on „OK“. If this dialog should not be shown anymore, because:

1. The resolution is everytime the same. Activate the checkbox „Don't show this dialog again“ , then activate „Always use default values from settings“ and put in the right resolution in the options.
2. The resolution of the data should be used everytime. Activate the checkbox „Don't show this dialog again“ and then activate „ Always use default values from settings“ . Immer die Auflösung aus der Datei verwendet werden soll.

The display of the resolution dialog can be reactivated in the options.
